Category：Walnut drying equipment

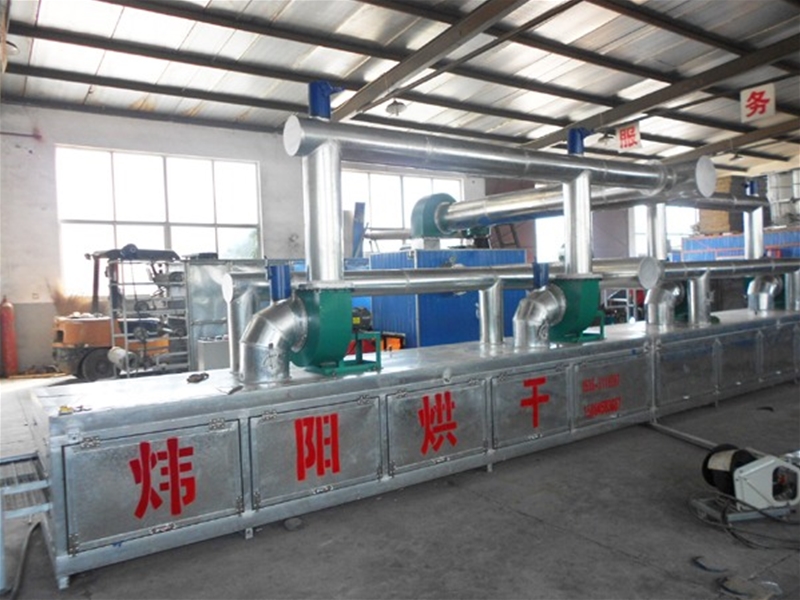

Walnut belt dryer product introduction:
This machine is a continuous flow drying equipment used for drying sheet-like and strip-shaped granular materials with good breathability. It is particularly suitable for materials with high moisture content such as dehydrated vegetables and traditional Chinese medicine decoction pieces that cannot be processed at high temperatures. This series of dryers has the advantages of fast drying speed, high evaporation rate, and good product quality. It can also be used to dry paste like materials in the form of dehydrated filter cakes after granulation or shaping into rod shapes.
Walnut dryer, walnut dryer performance characteristics:
It is possible to adjust the air volume, heating temperature, material residence time, and feeding speed to achieve a drying effect.
The equipment configuration is flexible and can use a mesh belt flushing system level material cooling system.
Most of the air is circulated and highly energy-efficient.
The sealing device ensures a more uniform distribution of hot air and guarantees consistent product quality.
The heat source can be matched with steam, thermal oil, electricity or coal-fired (oil) hot blast stove.
Working principle of walnut dryer and walnut dryer:
The materials are evenly spread on the mesh belt by the feeder, and the mesh belt is generally made of12-60The stainless steel wire mesh is dragged by a transmission device to move inside the dryer. The dryer consists of several units, each unit has independent hot air circulation, and some of the exhaust gas is discharged by a specialized dehumidification fan. The exhaust gas is controlled by a regulating valve, and the hot air passes through the mesh belt covered with materials from bottom to top or from top to bottom to complete the process of heat and mass transfer, taking away the moisture of the materials. The mesh belt moves slowly, and the operating speed can be freely adjusted according to the temperature of the materials. The dried finished product continuously falls into the feeder. The upper and lower loop units can be flexibly equipped according to user needs, and the number of units can also be selected as needed.
Technical parameters:
| model | DW-1.2-8 | DW-1.2-10 | DW-1.6-8 | DW1.6-10 | DW-2-8 | DW-2-10 |
| Number of units | four | five | four | five | four | five |
| Bandwidth m | one point two | one point two | one point six | one point six | two | two |
| Drying section length | eight | ten | eight | ten | eight | ten |
| Auxiliary material thickness mm | 10-80 | |||||
| Operating temperature ℃ | 60-130 | |||||
| Steam pressure Mpa | 0.2-0.8 | |||||
| Steam consumption kg/h | 120-130 | 150-375 | 150-375 | 170-470 | 180-500 | 225-600 |
| Drying time h | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.2-1.5 |
| Dry strength kgHtwoO/h | 60-160 | 80-220 | 75-220 | 95-250 | 100-260 | 120-300 |
Note: The drying strength shown in the table depends on the drying temperature of the material, the thickness of the auxiliary material, and the residence time.
